DESCRIPTION

Features:

1. DY mechanical tools, enhance practical ability.

2. Low downforce, labor-saving and easy to use.

3. Light weight, small size, easy to carry and place.

4. The barrel heats up slowly and lasts for a long time.

5. The sound is small, reducing the use noise, no continuous noise.

6. Outer rubber cover, soft feel, high comfort, better shock absorption.

7. No power supply, no large amount of dust, energy saving and environmental protection.

8. The load-bearing capacity of a single piece reaches 6KG, which meets the needs of daily load.

9. It only takes 10 seconds to complete each use, which is efficient and fast, saving time and labor costs.

Specification:

Model: S2 Mini Nail Gun

Material: Metal +ABS

Overall length: 33cm

Compatible nails: 25mm

Packing size: 37*15.5*5.5cm

Instructions:

1. Wear safety glasses, gloves and ear muffs.

2. Put the one-piece nail into the nail tube of the nail fixer.

3. Select the corresponding structural accessories according to the needs of the use site.

4. Place the selected structural attachment convex round hole on the head of the one-piece nail and cover the tool mouth.

5. Put the nail fixer with the integrated nail and structural accessories vertically up to the designated position at the job site to prepare for shooting.

6. Align the nail fixer at the designated position, press forward with force to fire the one-piece nail, drive the nail into the wall, and fix the structural accessories on the wall.

7. Take off the nail fixer, hold the muffler sleeve with your hand, and compress it back several times to remove the residual cartridge case remaining in the nail tube of the nail fixer for the next operation.

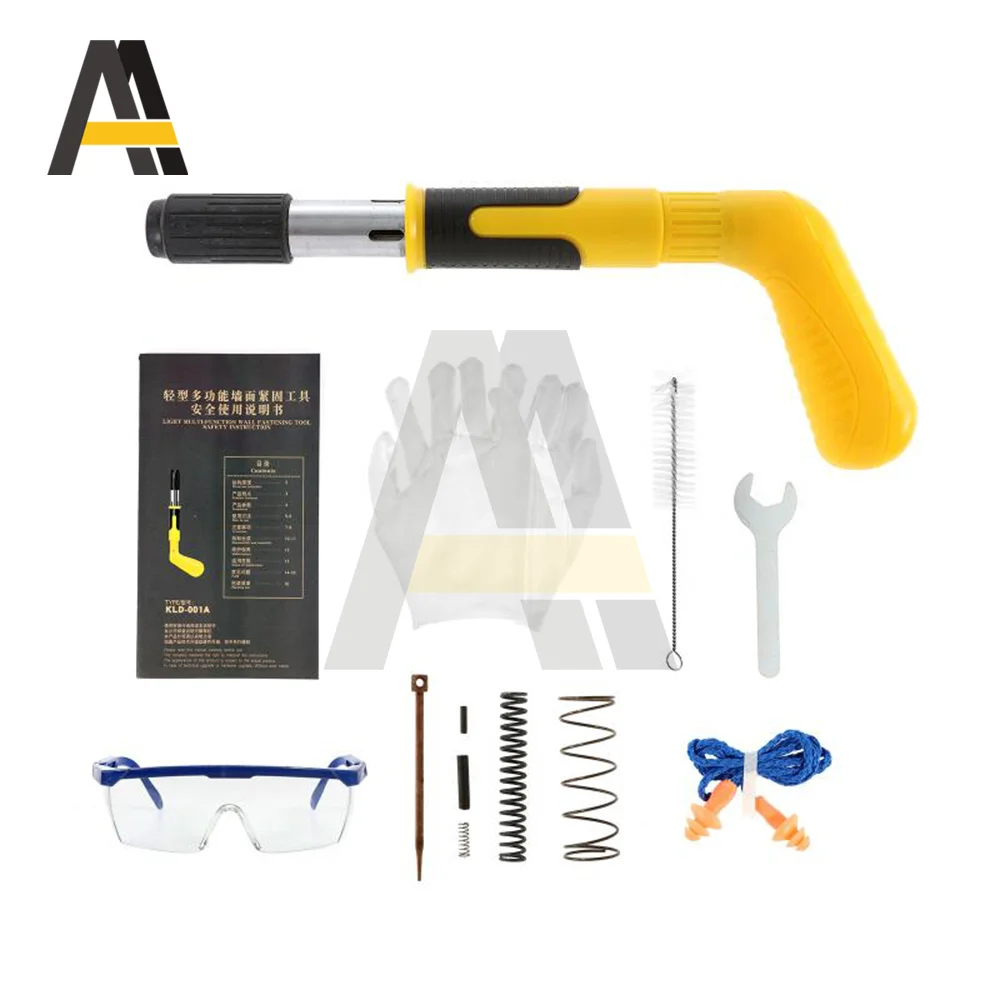

 Shipping list:

Shooting gun + manual + earplugs + brush + wrench + goggles + gloves + shell spring + firing pin spring + safety pin spring + limit pin + firing pin + firing pin

Notice:

1. Minors are prohibited from using and playing.

2. Manual measurement, there may be a little error.

3. This product is prohibited to be used on ceramic tiles.

4. Please wear safety glasses, gloves and earplugs before use.

5. It is forbidden to press the nail tube at the same time when nailing.

6. When using the nail fixer, be sure to push it vertically to the wall work place.

7. This product is prohibited to be used on hollow partitions and partitions.

8. Please read and complete the "Safety Instruction Manual" carefully before use.

9. It is forbidden to press the nail tube by hand when there are nails in the nail fixer.

10. This nail fixer is mainly a household tool, with a general service life of ≤1000 times.

11. It is forbidden to aim the nail nozzle at yourself or others under any circumstances.

12. It is forbidden to use the nail fixer in places with inflammable and explosive materials.

13. In order to ensure operation safety and operation quality, try to use KLD-01A series matching integrated nail and nail fixer.

14. Those who have not carefully studied and read this "Safety Instruction Manual" shall not operate the nail fixer.

15. When the nail fixer is out of use, maintenance, dismantling and cleaning of residues, there shall be no integral nails in the nail tube.

16. After each use, the residual cartridge case remaining in the nail tube of the nail fixer should be removed in time to facilitate the next use.

17. This nail fixer is only suitable for light-loaded places. The general use area is the wall, and the load-bearing capacity of each nail is not more than 6KG.

18. For places that need to bear a large force, consider increasing the density of the installation location and distribute it evenly to make it evenly stressed.

19. The normal noise level of this product is around 100 decibels (related to the space environment and substrate). Please be sure to wear earplugs before use.

20. This product is mainly used for fixing the plastering layer of the wall (solid brick wall, cement brick wall or concrete), and it should be used with caution in other places.

21. If the nails fail to be fastened during use, the nail fixer should be stopped for 5 seconds before leaving the working surface, and the faulty nails should be removed in a safe area.

22. Be careful to handle it with care during subsequent installation, and do not deliberately pull the connection accessories hard, which will easily lead to deformation of the structural accessories.

23. The substrate should be carefully checked before use, and a flat substrate surface should be selected as the operating point as far as possible. The distance between adjacent points of the operating point should be about 20cm.

24. Since the nail fixer will generate heat during use, the temperature of the nail tube will continue to rise during continuous use, and it will be easy to burn your hands. After 20 to 30 times of continuous use, it should be suspended and used again after cooling.

25. When the shooting fails to be fired, the nails are not driven in place, or the shells are still left on the nails after the firing is successful, it is strictly forbidden to directly touch any part of the projectile body. and remove the remaining cartridge case from the nail.

26. For the base body that needs to be operated with a nail fixer, you can try 2-3 rounds of one-piece nails first to check whether they can be driven in place, suitable for the basic, whether the structural accessories are compressed and whether they are broken down and fall off.
